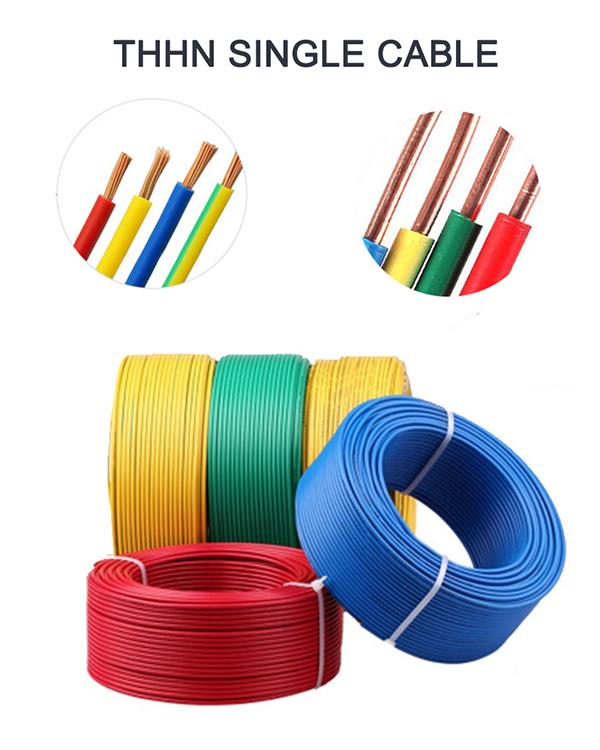

Solid and strands THHN Nylon jacket wire

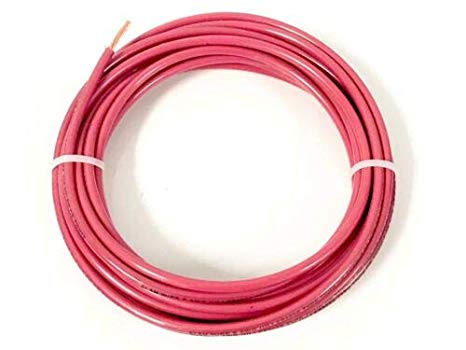

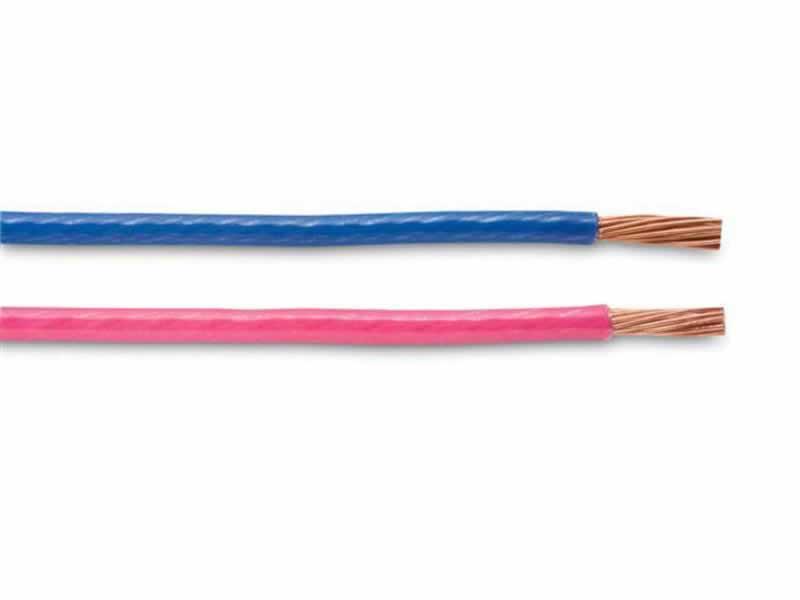

THHN/THWN Nylon jacket copper wire
Description
THHN-THWN: 75°C Oil, 75°C Wet, 90°C Dry, 600V
Reference standard: UL 83 & UL 1581,UL1063,CSA C22.2No.75-03
1. Rated Voltage:
600/1000V
2. Rated Temperature (ºC):
90ºCdry for THHN,75ºC day or 75ºC for THWN,90ºC dry or 90ºC wet for THWN-2.
3. Structure:
Conductor: Solid or Stranded Copper
Insulation: PVC
Sheathing: Nylon
4. Color:We can produce different colors as per the requirements of the clients.

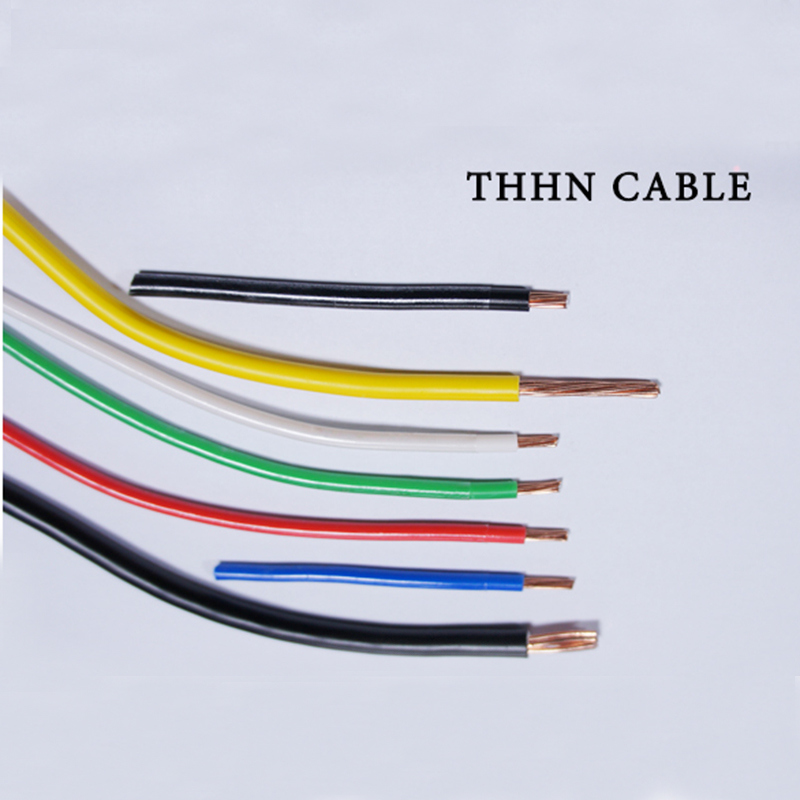

THHN PVC insulated Nylon sheathed cable is manufactured according to the standards of UL758, UL62, UL83, it is mainly used in construction and electrical wiring installation, it has heat resistance, good electrical and physical properties of the more excellent, can slow or reduce the PVC component of the escape or migration
| Part No. |
Conductor | Insulation | Jacket | Max Dia- meter (mm) |
Ref.W
(kg/km) |
|||
| Size (AWG) |
Construction (No./mm) |
Dia-Meter (mm) |
Nominal Thickness (mm) |
Nominal Diameter (mm) |
Nominal Diameter (mm) |
|||
| THHN-14B | 14 | 7/0.62 | 1.86 | 0.38 | 2.66 | 2.90 | 3.3 | 25 |
| THHN-14B1 | 14 | 19/0.38 | 1.90 | 0.38 | 2.70 | 2.94 | 3.4 | 25 |
| THHN-12B1 | 12 | 19/0.47 | 2.35 | 0.38 | 3.15 | 3.39 | 3.8 | 38 |
| THHN-10B1 | 10 | 19/0.60 | 3.00 | 0.51 | 4.06 | 4.30 | 4.8 | 59 |
| THHN-8B | 8 | 7/1.23 | 3.69 | 0.76 | 5.25 | 5.55 | 6.2 | 97 |
| THHN-8B1 | 8 | 19/0.75 | 3.75 | 0.76 | 5.31 | 5.61 | 6.3 | 96 |
| THHN-6B1 | 6 | 19/0.95 | 4.77 | 0.76 | 6.33 | 6.63 | 7.4 | 146 |
| THHN-4B1 | 4 | 19/1.19 | 5.95 | 0.76 | 7.51 | 7.81 | 8.7 | 135 |
| THHN-3B1 | 3 | 19/1.33 | 6.65 | 1.02 | 8.73 | 9.07 | 10.0 | 291 |
| THHN-2B1 | 2 | 19/1.50 | 7.50 | 1.02 | 9.58 | 9.92 | 11.0 | 361 |
| THHN-1B | 1 | 19/1.68 | 8.40 | 1.02 | 10.48 | 10.88 | 12.1 | 457 |
| THHN-1/0B | 1/0 | 19/1.89 | 9.45 | 1.27 | 12.03 | 12.43 | 13.8 | 585 |
| THHN-2/0B | 2/0 | 19/2.12 | 10.60 | 1.27 | 13.18 | 13.58 | 15.1 | 724 |
| THHN-3/0B | 3/0 | 19/2.38 | 11.90 | 1.27 | 14.48 | 14.88 | 16.5 | 900 |
| THHN-4/0B | 4/0 | 19/2.67 | 13.35 | 1.27 | 15.93 | 16.33 | 18.1 | 1118 |
