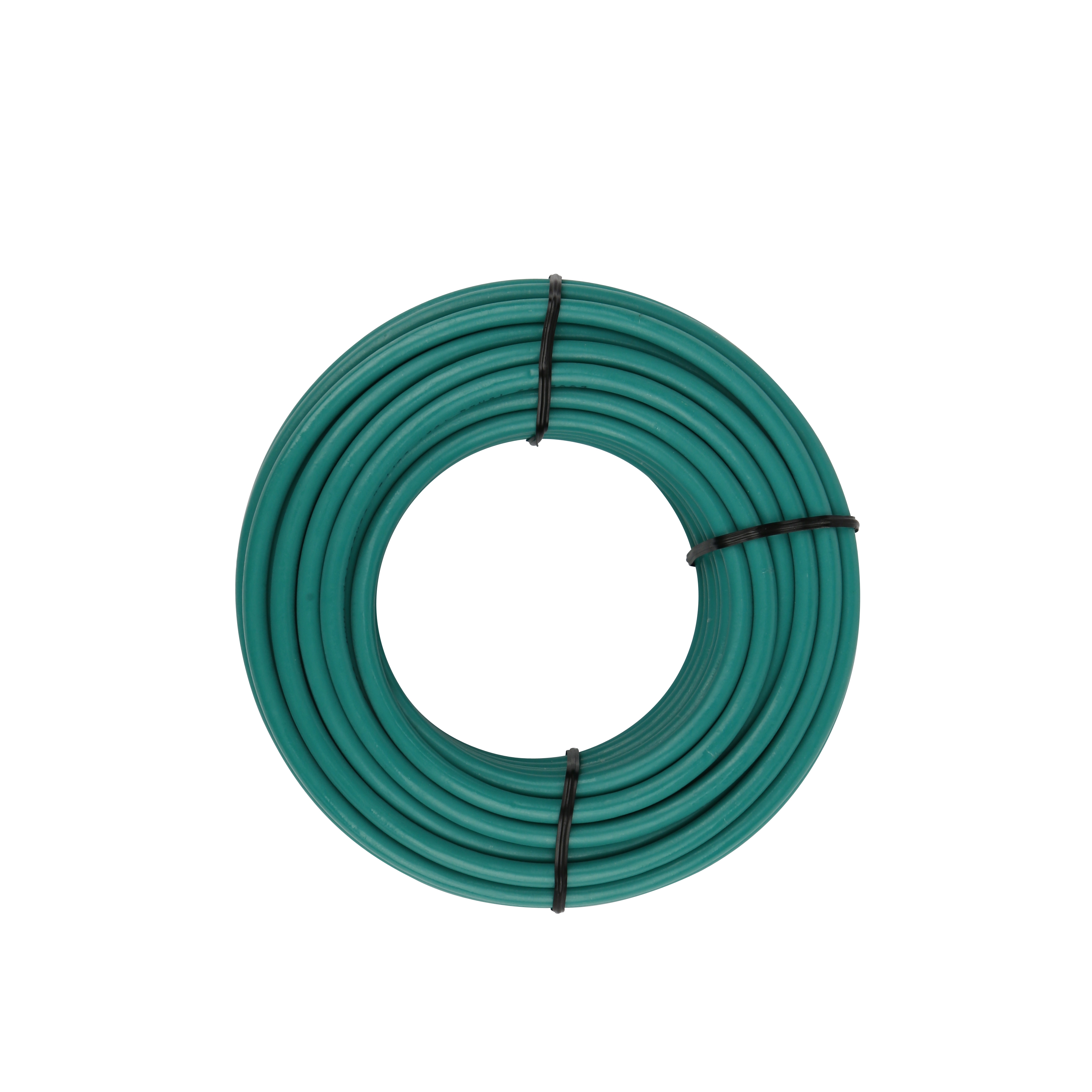

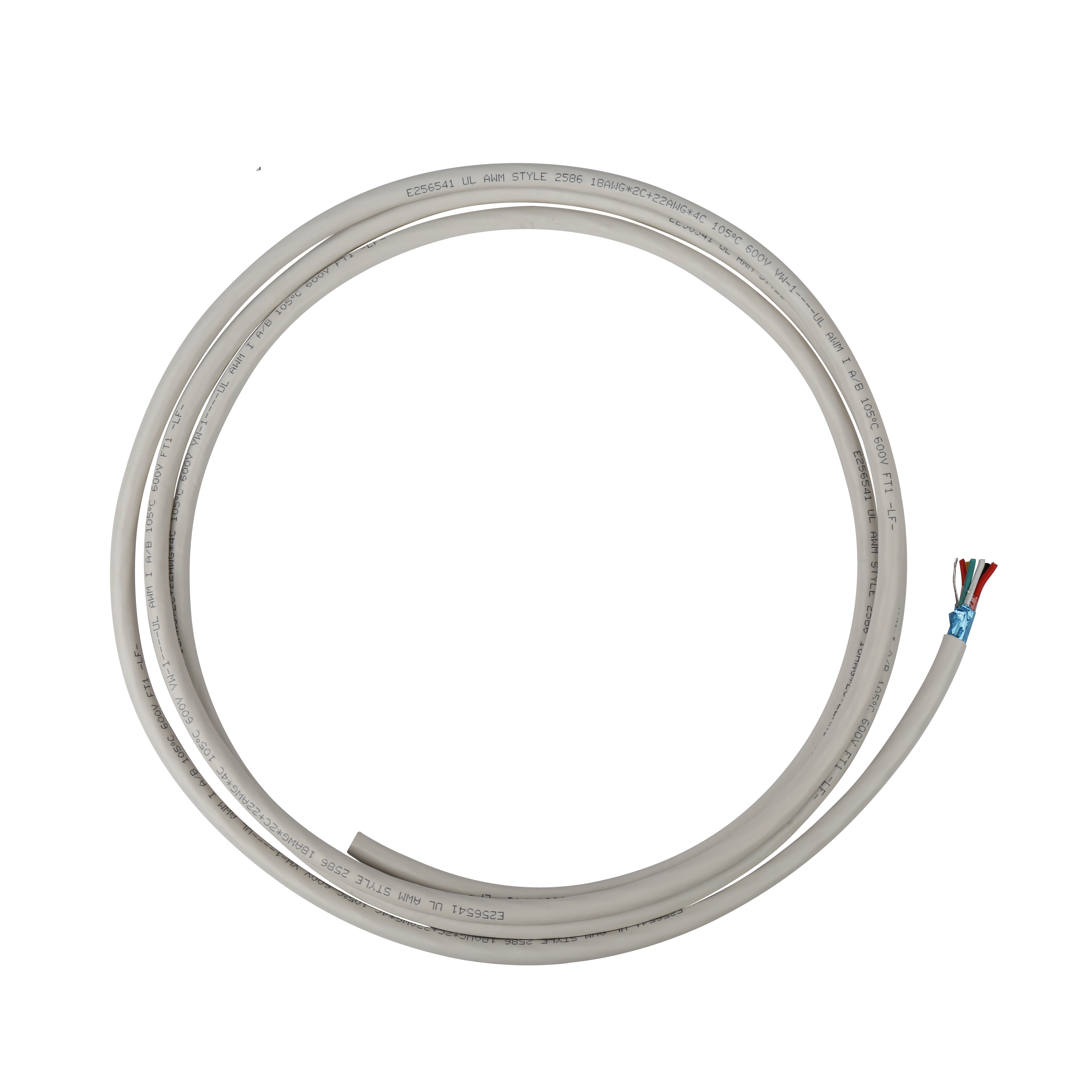

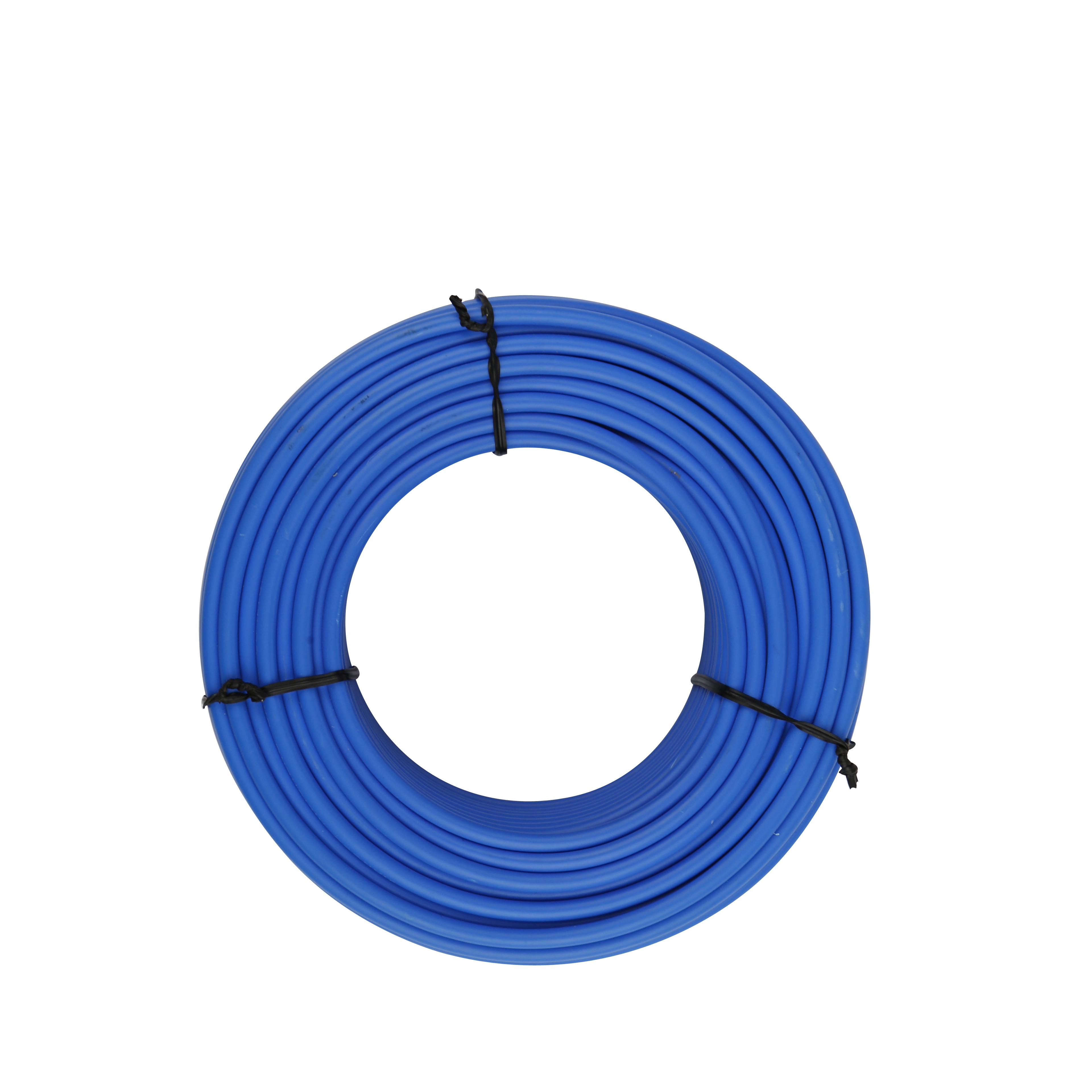

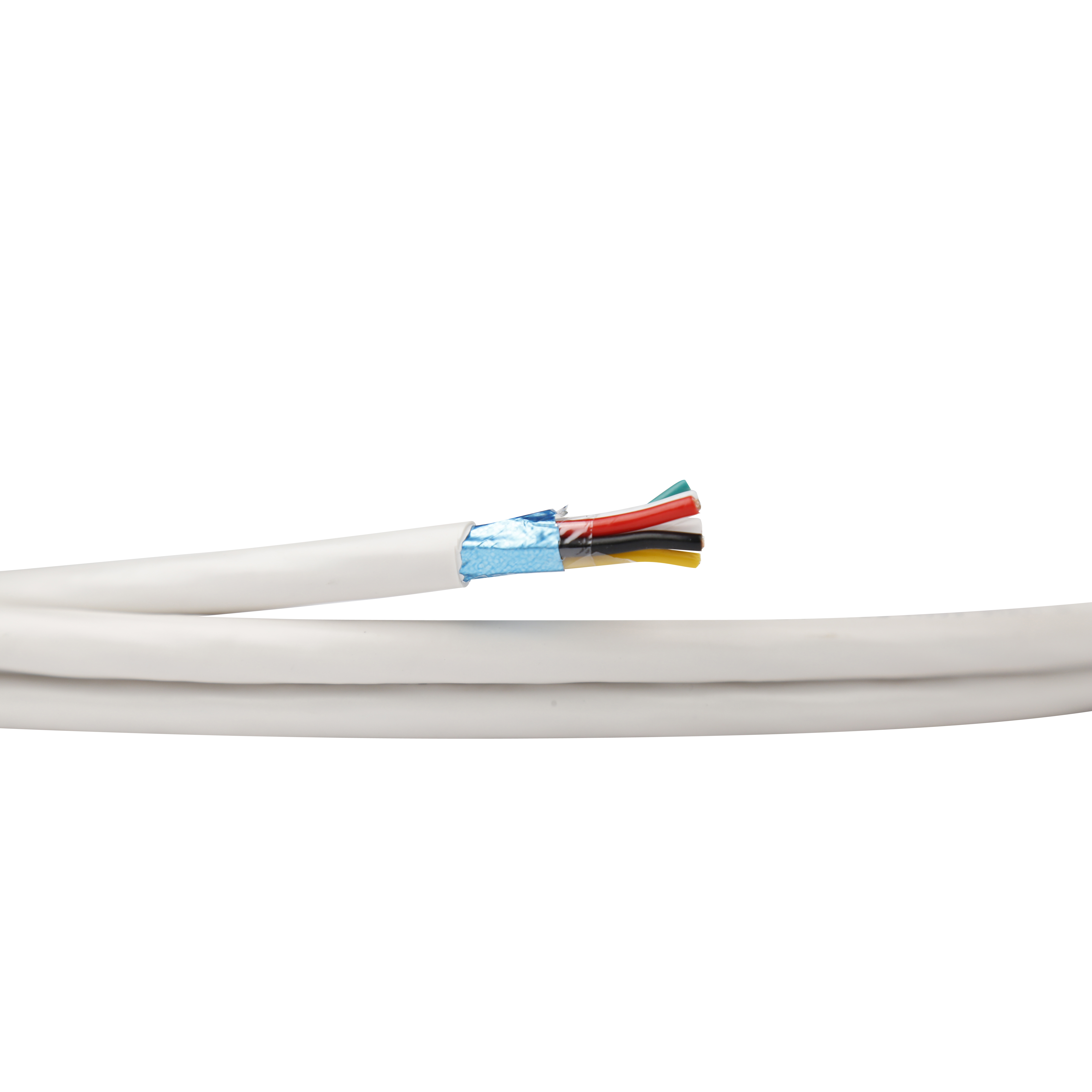

Nylon jacket 450V THHN THWN wire on harness
THWN wire
Description
Description:
1.conductor: bare copper(solid or strand)
2.insulation:PVC
3.jacket:Nylon
4.color: Black, White,Yellow,Red, Brown,Green,Grey,customized
5.working temperature:75℃ wet, 90℃ dry
| Part No. |
Conductor | Insulation | Jacket | Max Dia- meter (mm) |
Ref.W
(kg/km) |
|||
| Size (AWG) |
Construction (No./mm) |
Dia-Meter (mm) |
Nominal Thickness (mm) |
Nominal Diameter (mm) |
Nominal Diameter (mm) |
|||
| THHN-14B | 14 | 7/0.62 | 1.86 | 0.38 | 2.66 | 2.90 | 3.3 | 25 |
| THHN-14B1 | 14 | 19/0.38 | 1.90 | 0.38 | 2.70 | 2.94 | 3.4 | 25 |
| THHN-12B1 | 12 | 19/0.47 | 2.35 | 0.38 | 3.15 | 3.39 | 3.8 | 38 |
| THHN-10B1 | 10 | 19/0.60 | 3.00 | 0.51 | 4.06 | 4.30 | 4.8 | 59 |
| THHN-8B | 8 | 7/1.23 | 3.69 | 0.76 | 5.25 | 5.55 | 6.2 | 97 |
| THHN-8B1 | 8 | 19/0.75 | 3.75 | 0.76 | 5.31 | 5.61 | 6.3 | 96 |
| THHN-6B1 | 6 | 19/0.95 | 4.77 | 0.76 | 6.33 | 6.63 | 7.4 | 146 |
| THHN-4B1 | 4 | 19/1.19 | 5.95 | 0.76 | 7.51 | 7.81 | 8.7 | 135 |
| THHN-3B1 | 3 | 19/1.33 | 6.65 | 1.02 | 8.73 | 9.07 | 10.0 | 291 |
| THHN-2B1 | 2 | 19/1.50 | 7.50 | 1.02 | 9.58 | 9.92 | 11.0 | 361 |
| THHN-1B | 1 | 19/1.68 | 8.40 | 1.02 | 10.48 | 10.88 | 12.1 | 457 |
| THHN-1/0B | 1/0 | 19/1.89 | 9.45 | 1.27 | 12.03 | 12.43 | 13.8 | 585 |
| THHN-2/0B | 2/0 | 19/2.12 | 10.60 | 1.27 | 13.18 | 13.58 | 15.1 | 724 |
| THHN-3/0B | 3/0 | 19/2.38 | 11.90 | 1.27 | 14.48 | 14.88 | 16.5 | 900 |
| THHN-4/0B | 4/0 | 19/2.67 | 13.35 | 1.27 | 15.93 | 16.33 | 18.1 | 1118
|
