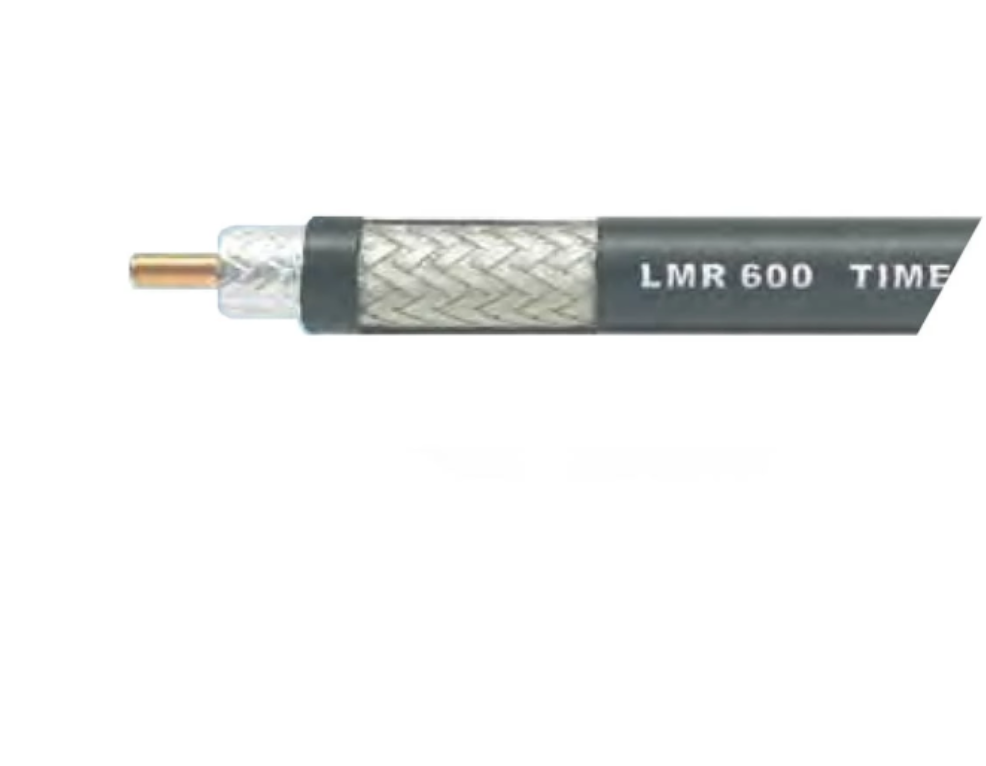

LSR600 (LMR600) Flexible low loss coaxial cable specifications

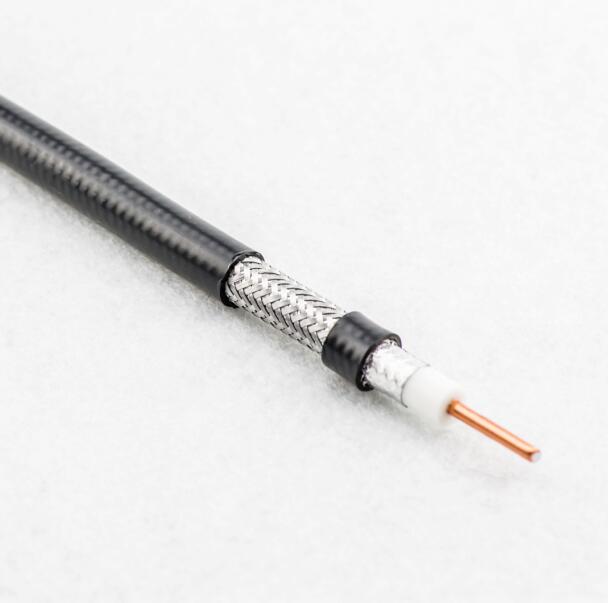

Description:
. Conductor :CCA(Copper Clad Aluminum)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application:
1.LS600 is the same specification as LMR600, generally designed for jumper assemblies in wireless communications systems
2.LSR600 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
3.LSR600(LMR600) is equivalent to 12D-FB foam PE coaxial cable
Best Feature:
1. LSR600/ LMR600 cable features a flexible outer conductor, the bending radius is better than the cable in similar size.
2.Low Loss: Lowest loss of any flexible cable; comparable loss to semi–rigid cables

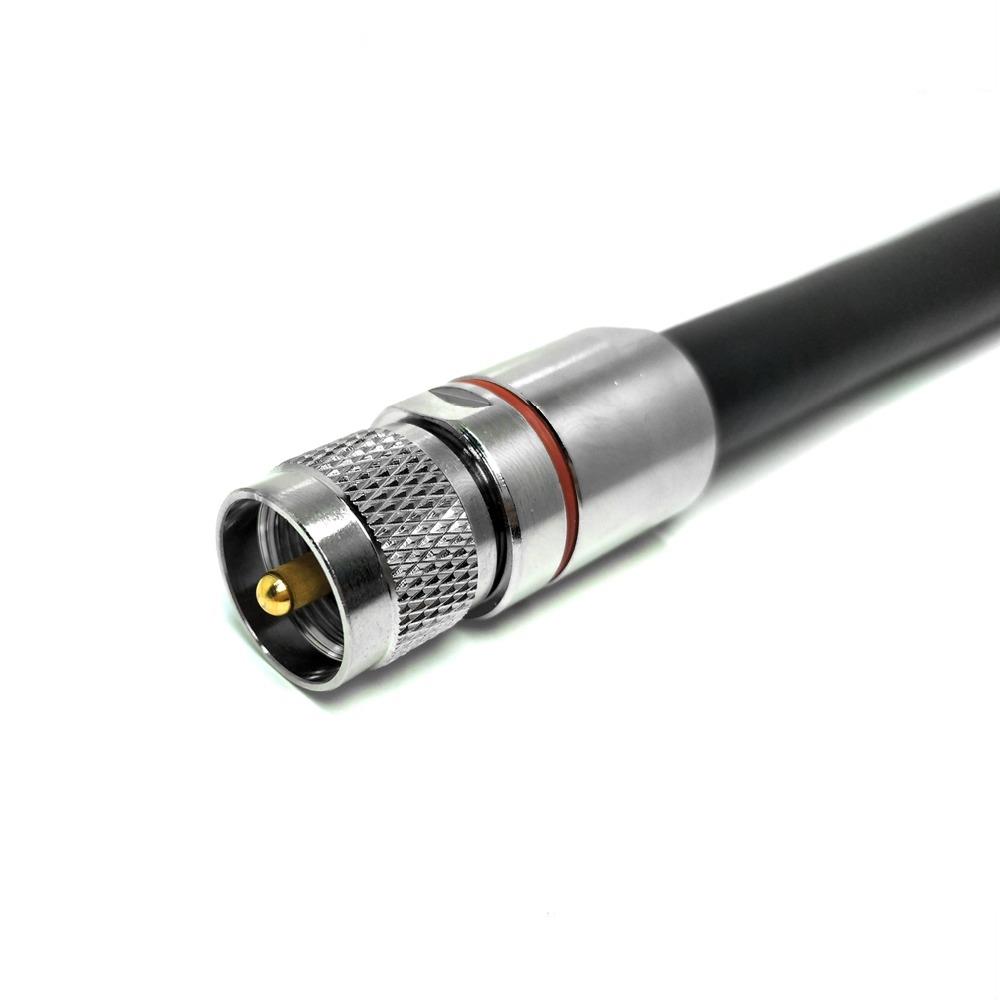

Please contact us for LSR600 cable assembly with N connector to SMA connector
| LSR600(LMR600) low loss coaxial cable specifications | |
| Material of Inner Conductor | CCA, BC |
| Structure of Inner Conductor | 1/4.47mm |
| Material of Insulation | FPE(Foam PE) |
| Diameter of Insulation | 11.5mm |
| 1st Shielding | Aluminum Tape |
| Material of Braiding(2nd Shielding) | TC (Tinned Copper), |
| Structure of Braiding(2nd Shielding) | 168*0.18mm |
| Material of Jacket | PVC,PE, FRPE, FRPVC |
| Diameter of Jacket | 15.0mm |
| Working temp | -40℃/80℃ |
| Impedance | 50Ω±2 |
| Voltage | 4000V |
| SWR(0-2500MHz) | ≤1.2 |
