Description

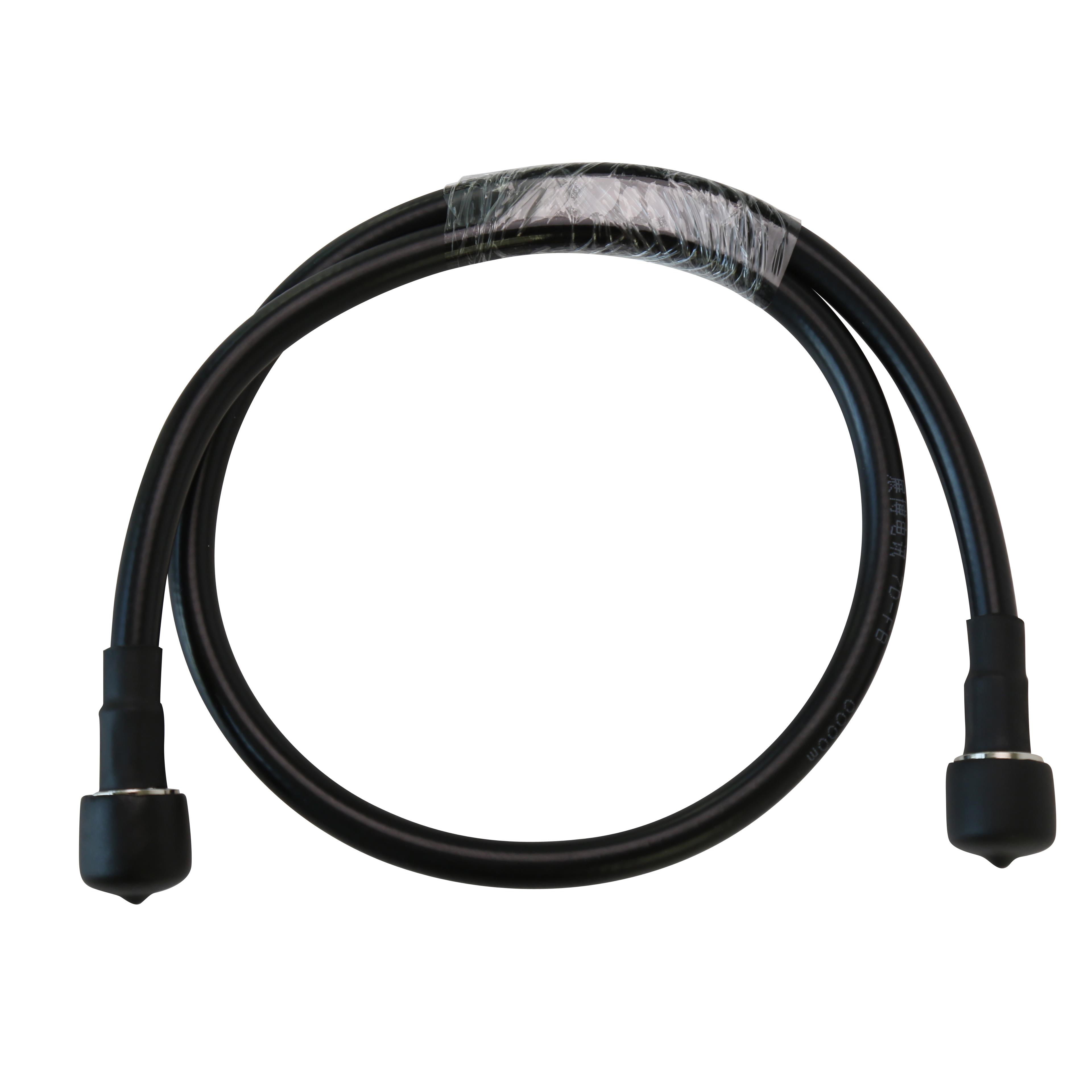

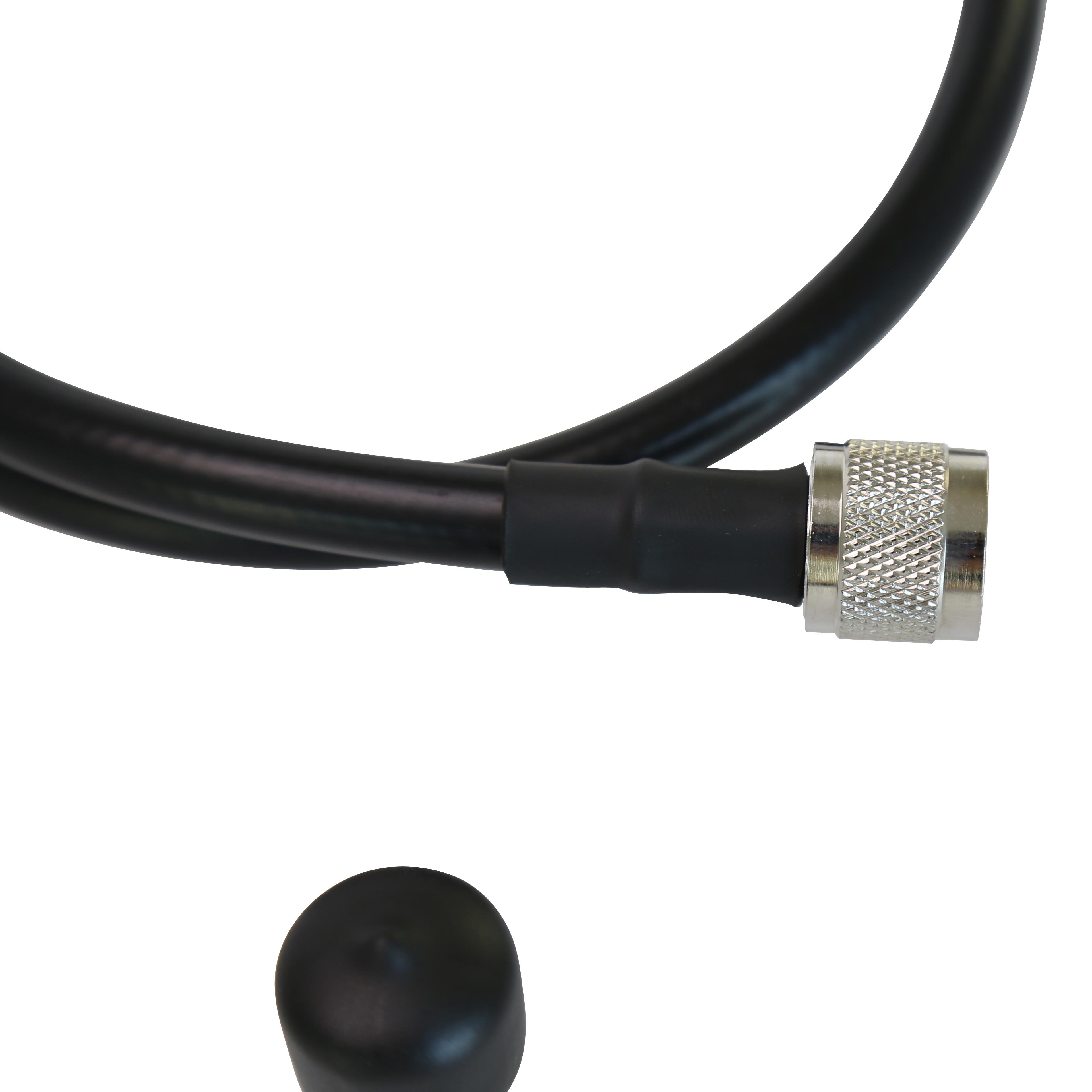

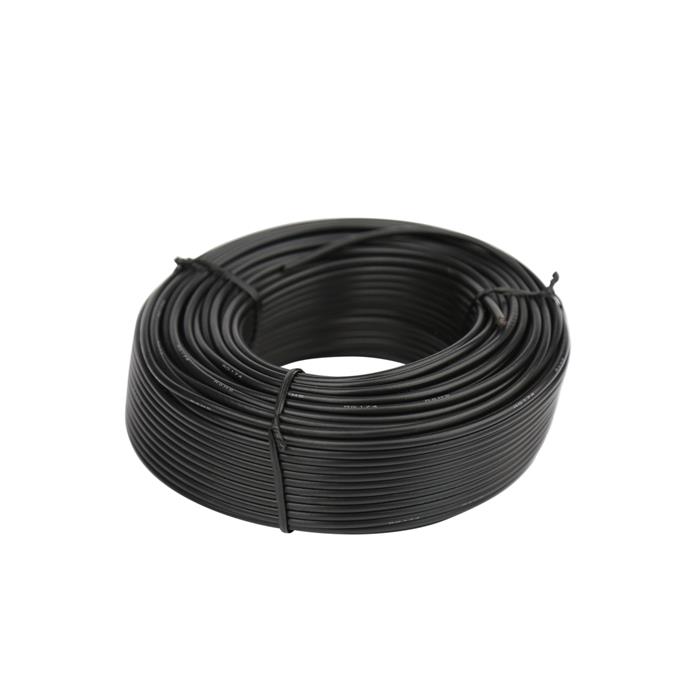

1000ft length LMR400 bare copper conductor cable with N connector for telecommunication
Product Description

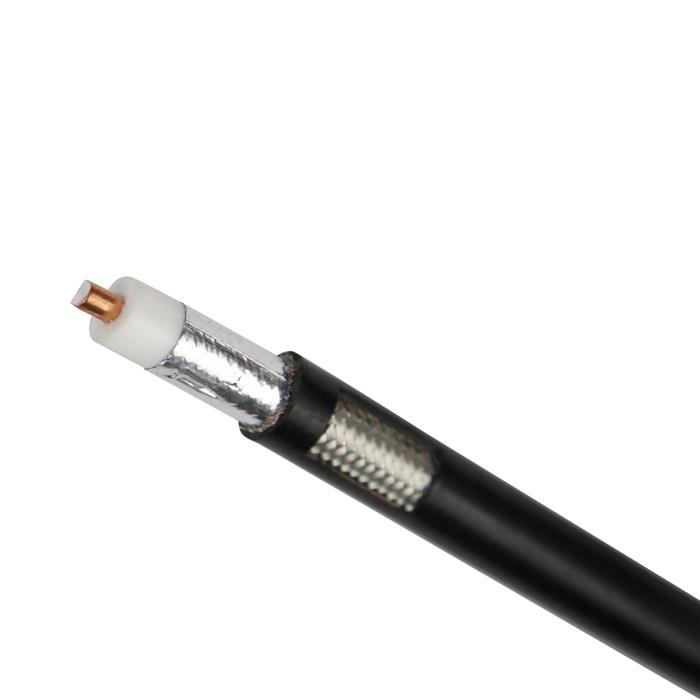

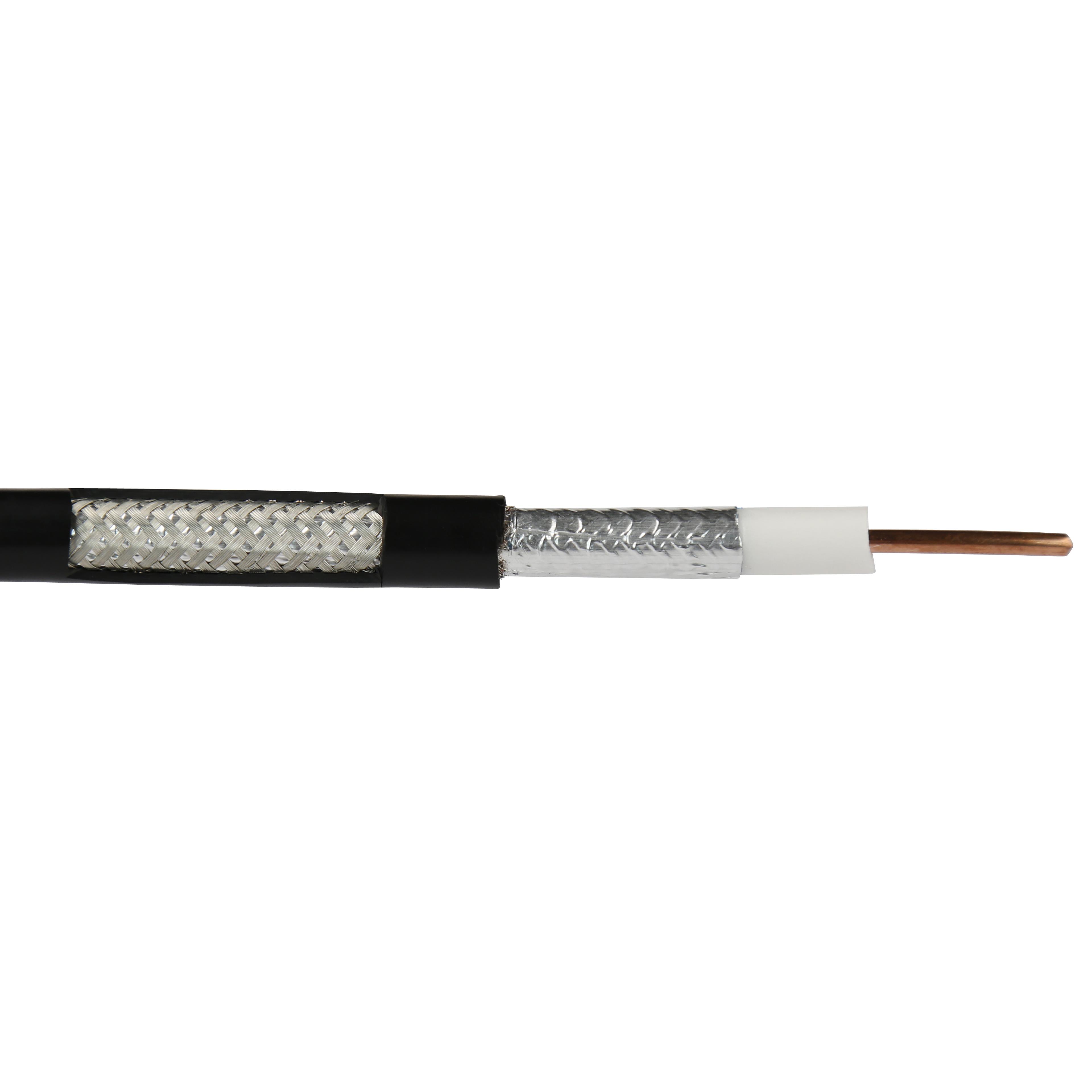

. Conductor:BC(Bare Copper)
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
1. LSR400/ LMR 400 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.
2.Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables
3. AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver

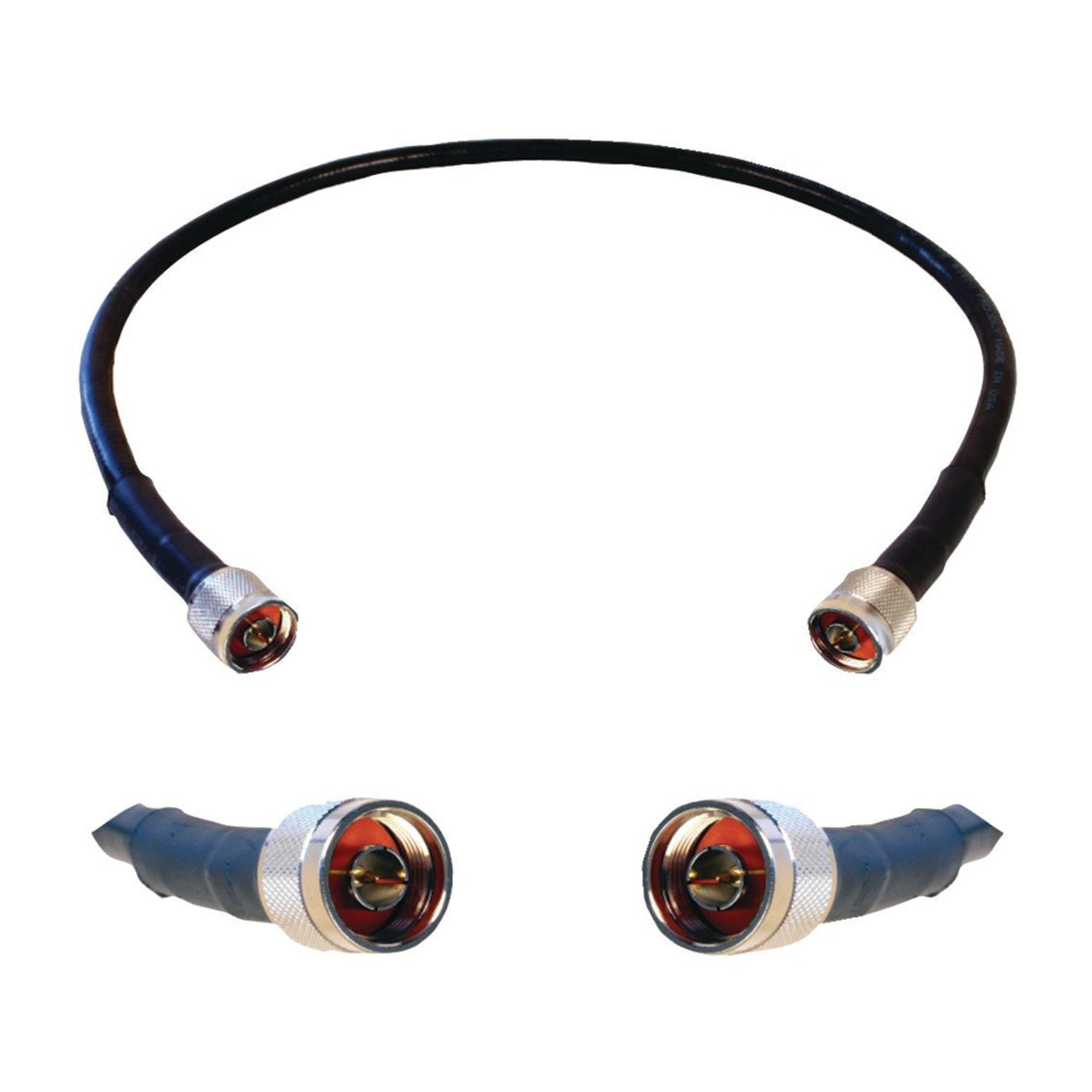

Please contact us for LSR400 cable assembly with N connector to SMA connector
| LSR400(LMR400) low loss coaxial cable specifications | |
| Material of Inner Conductor | BC (Bare Copper) |
| Structure of Inner Conductor | 1/2.74mm |
| Material of Insulation | FPE(Foam PE) |
| Diameter of Insulation | 7.24mm |
| 1st Shielding | Aluminum Tape |
| Material of Braiding(2nd Shielding) | TC (Tinned Copper) |
| Structure of Braiding(2nd Shielding) | 144*0.15mm |
| Material of Jacket | PE, PVC, LSZH,FR-PVC,FR-LSZH |
| Diameter of Jacket | 10.29mm |
| Working temp | -40℃/80℃ |
| Impedance | 50Ω±2 |
| Voltage | 2500V |
