Description

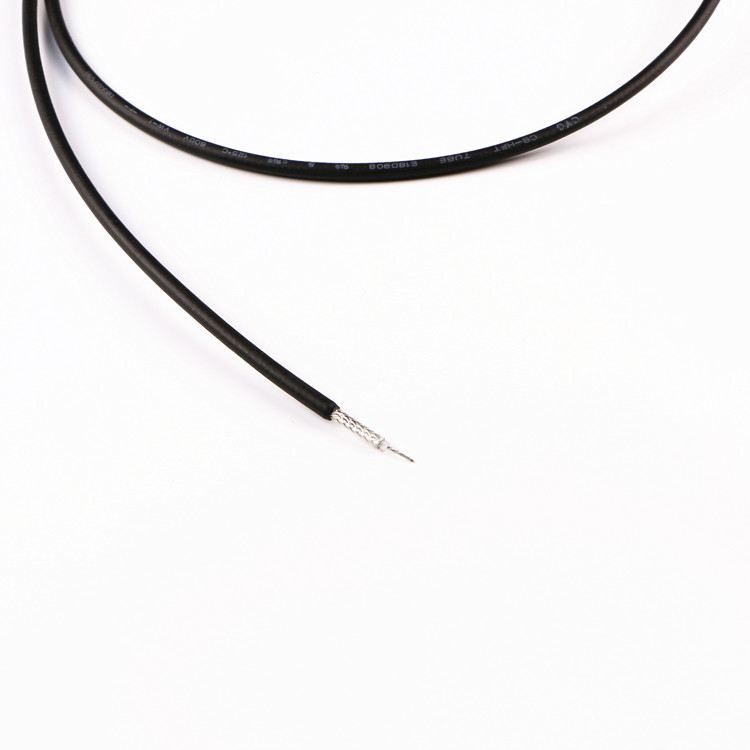

The cable be used for mobile communication or radio communication antenna, and ground station antenna, feeder cable be used in computer lab and antenna, armed data information’s transmission cable and so on.
In addition to RG59 with solid core PE insulated, cables with foamed PE insulated, it has the low loss, low delay, minimum attention properties.

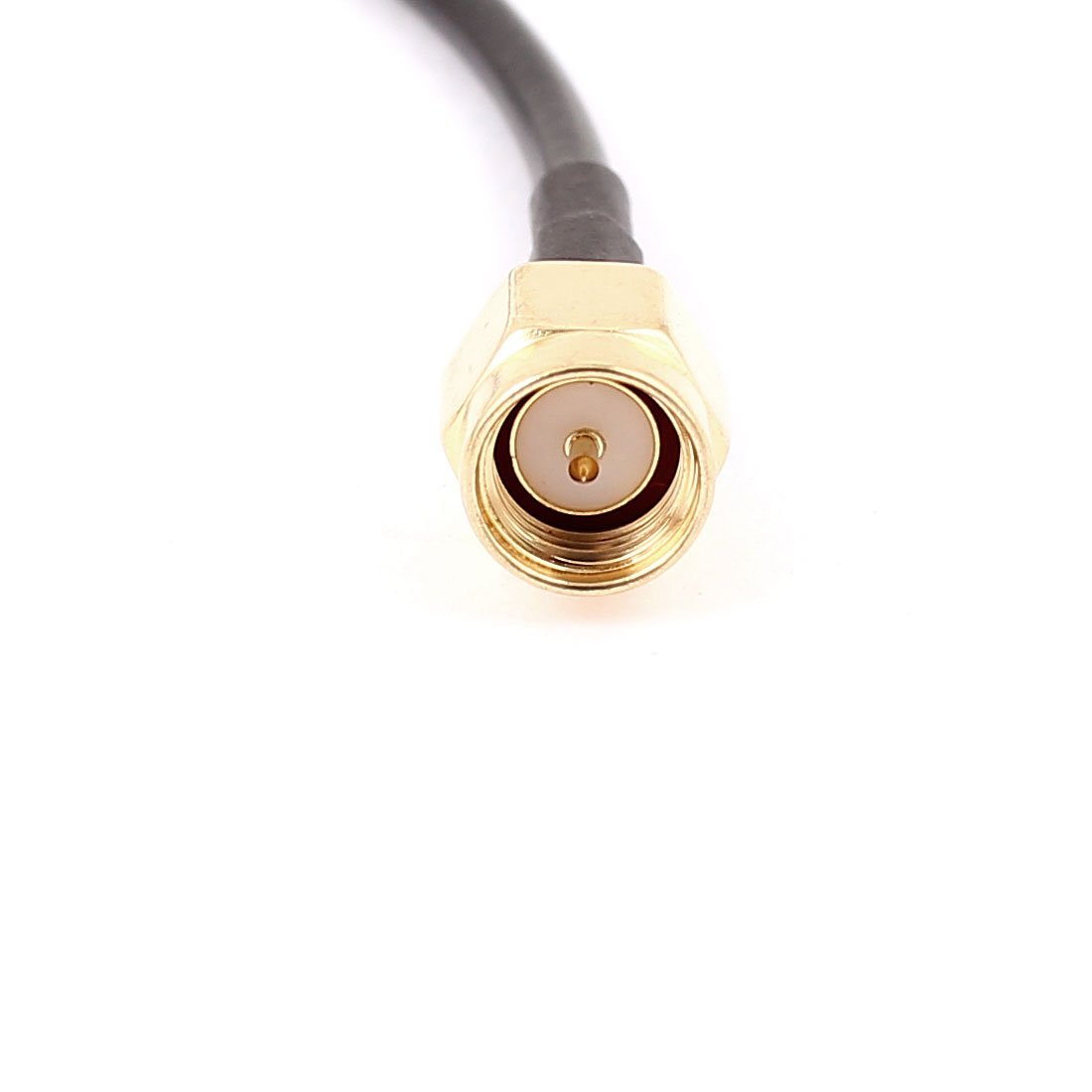

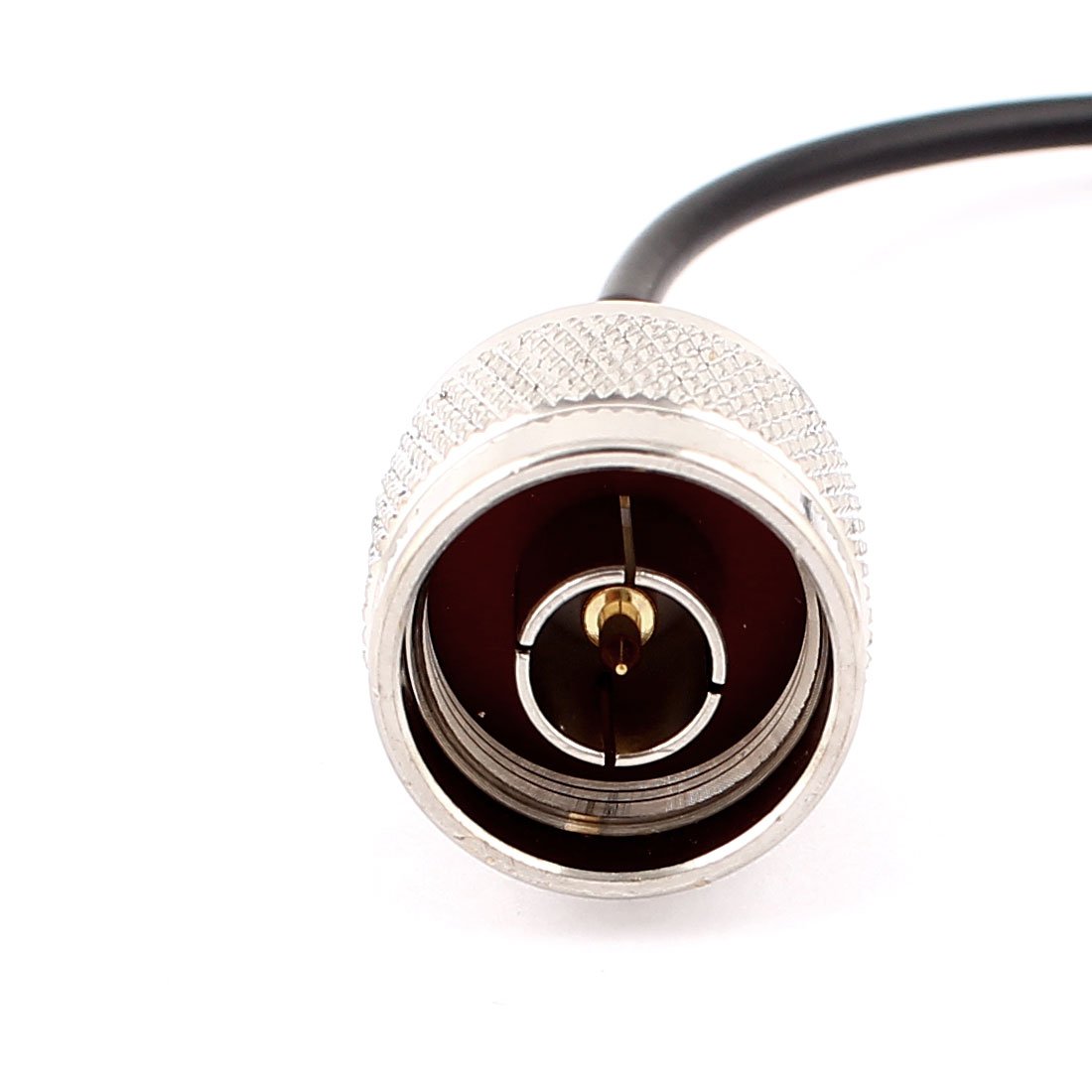

| SMA | BNC | N | TNC | ||
| Frequency range | DC~3GHz | DC~3GHz | DC~3GHz | DC~3GHz | DC~1GHz |
| Impedance | 50Ω | 50Ω/75Ω | 50Ω/75Ω | 50Ω | 75Ω |
| Power | 0.25~3W | 0.25~1W | 0.5~5W | 0.25~1W | 0.5W |
| VSWR | <=1.10 | <=1.20 | <=1.15 | <=1.20 | <=1.20 |
| Working Voltage | 335V | 500V | 1000V | 500V | 170V |
| Withstanding Voltage | 1000V | 1500V | 2500V | 1500V | 500V |
| Contact Resistance | Center contact<=3mΩ | Center contact<=1.5mΩ | Center contact<=1mΩ | Center contact<=1mΩ | Center contact<=10mΩ |
| Outer contact<=2mΩ | Outer contact<=1mΩ | Outer contact<=1mΩ | Outer contact<=1mΩ | Outer contact<=5mΩ | |
| Insulation resistance | 5000mΩ | 5000mΩ | 5000mΩ | 5000mΩ | 1000mΩ |
| Durability | 500(cycles) | 500(cycles) | 500(cycles) | 500(cycles) | 500(cycles) |
